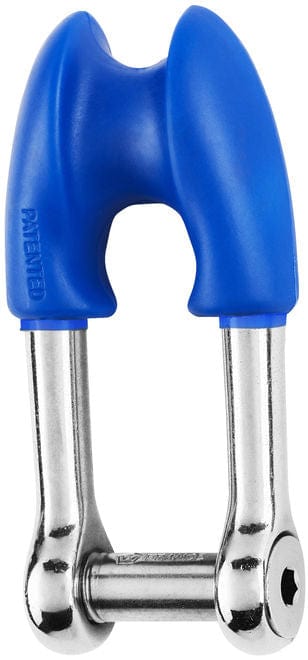

Ultra Light Thimble Shackle with Captive Pin
Wichard's thimble shackle with captive pin is designed to be spliced to a halyard ensuring both the pin and shackle remain attached at all times-even if somebody accidentally let's go....!
As with all Wichard products this range of Halyard Shackles offer outstanding working and breaking loads.
Uses
- Mainsail Halyard Shackles
- Applications requiring a Fixed Shackle
Variants

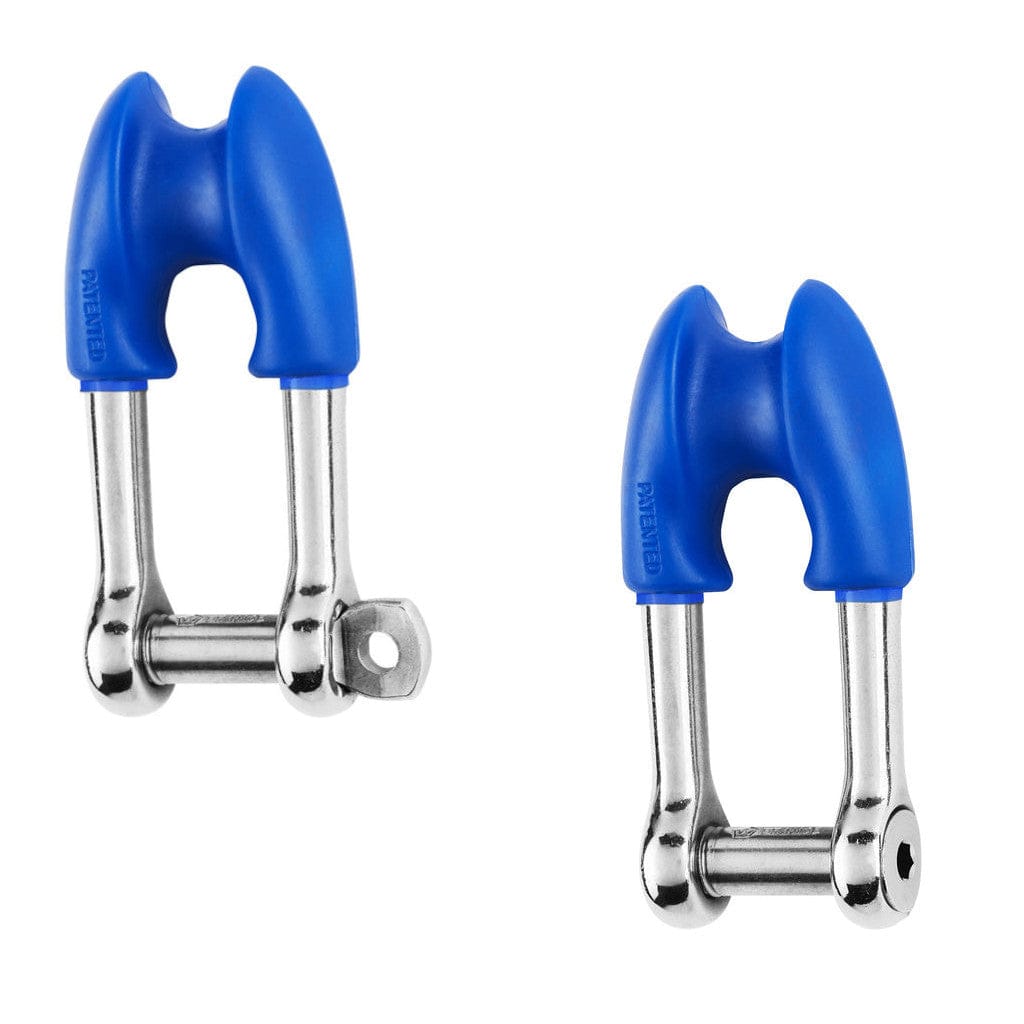

- 2 sizes with 2 types of pin

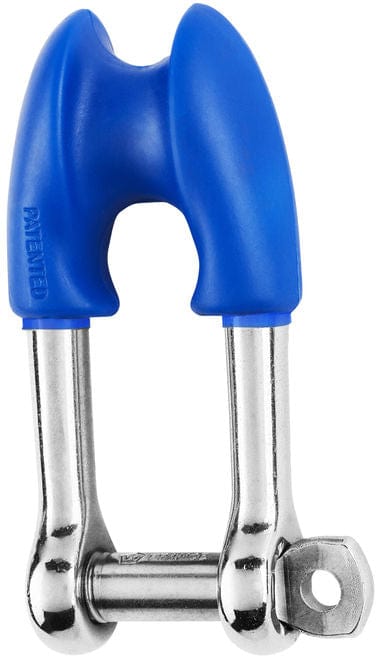

- Standard Captive Pin
- Allen Head Captive Pin
Construction
- Forged 316L Grade Stainless Steel
- Blue Plastic Thimble Insert
Specification

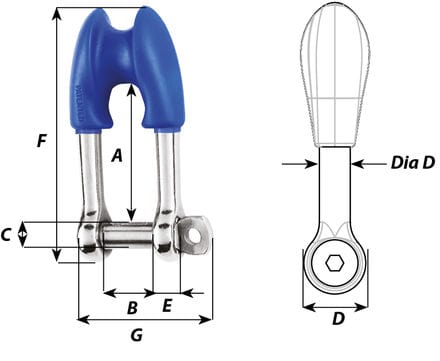

| Model | For Rope Diameter (mm) | Pin Type | Working Load Limit (kg) | Breaking Strength (kg) | Weight (g) | Length F (mm) | Diameter D (mm) |
|---|---|---|---|---|---|---|---|
| #1494 | 8mm-12mm | Captive Standard | 1,000 | 3,000 | 78 | 76 | 8 |
| #1495 | 12mm-16mm | Captive Standard | 1,520 | 5,000 | 146 | 95 | 10 |
| #1394 | 8mm-12mm | Captive Allen Head | 1,000 | 3,000 | 76 | 76 | 8 |
| #1395 | 12mm-16mm | Captive Allen Head | 1,520 | 5,000 | 142 | 96 | 10 |
