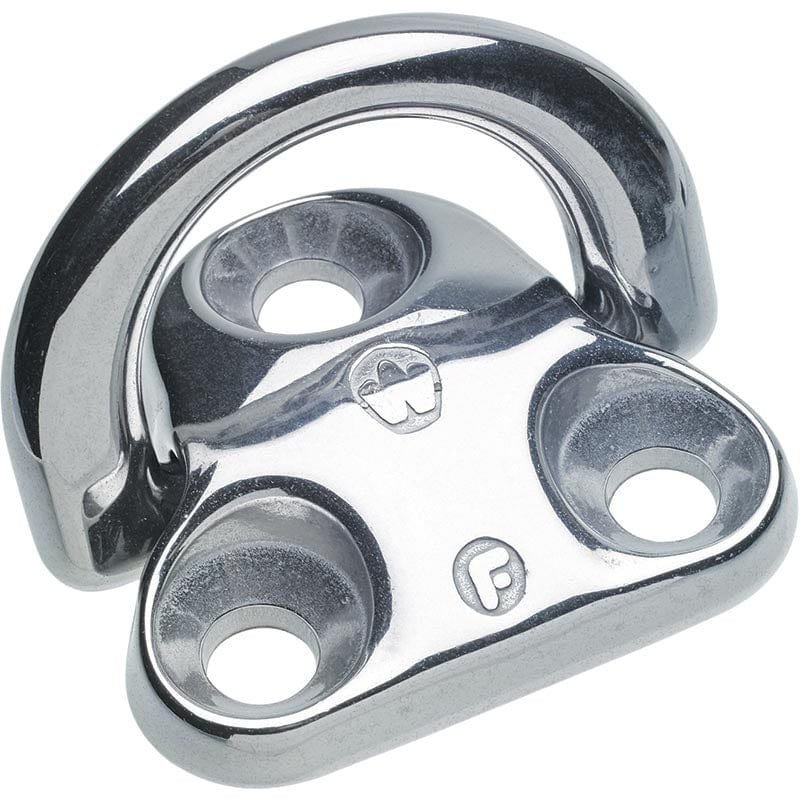

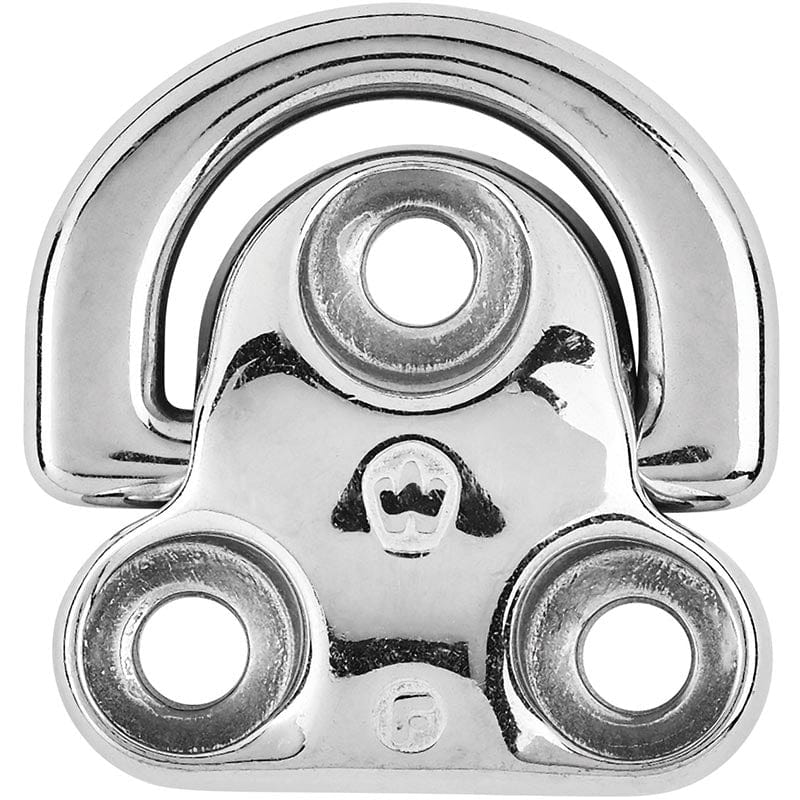

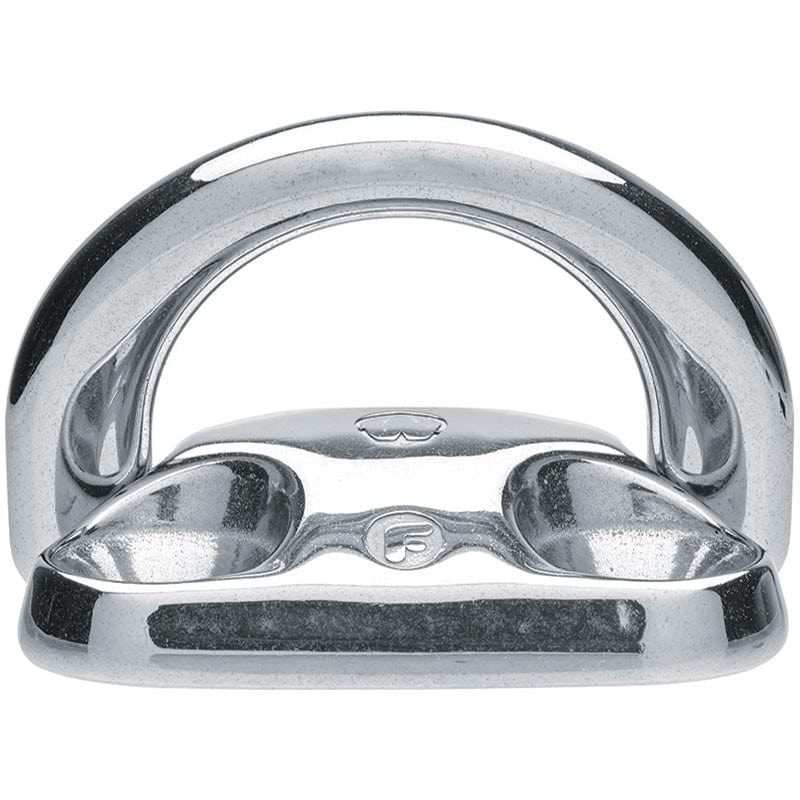

Stainless Steel Folding Pad Eye - Tether Attachment
Wichard stainless steel forged folding pad eye for use in any safety related applications around the boat requiring a high strength ISO-compliant attachment point. Suitable for use on coded yachts as part of a lifeline/tether attachment point.

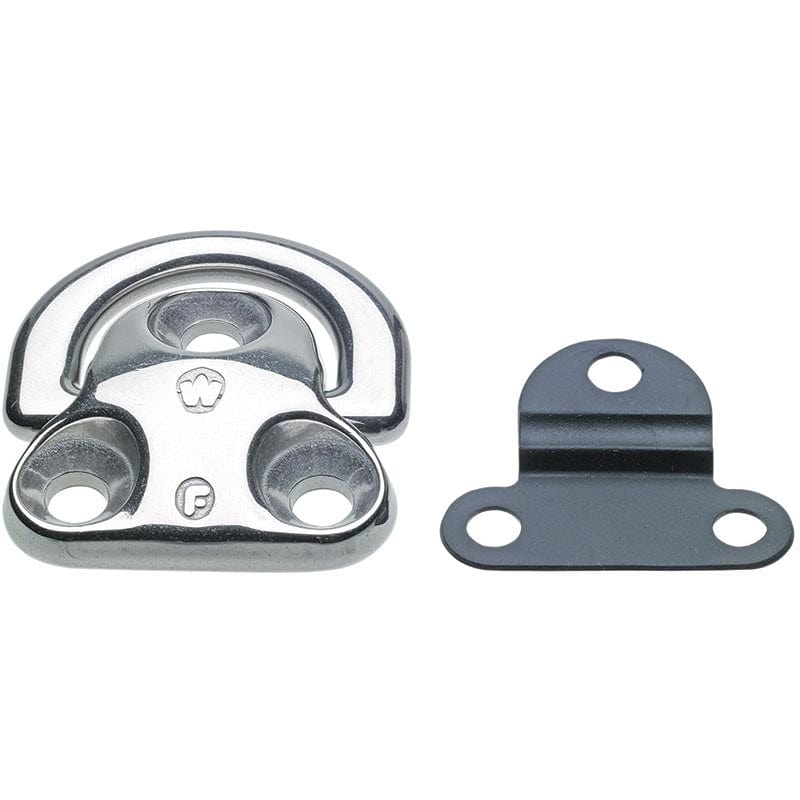

Heavy duty load working loads from any angle and fold flat to prevent injuries on deck when not in use. Comes with a silicon backing pad to reduce noise and vibration.
Uses
- Fastening point for Tethers / Lifeline Attachment
- Jib Tack
- Block Attachment
- Folding Halyard Securing Point
- Fixing/Anchor Points Internal/External
- Righting Lines
- Outboard Securing Point
- Pipe Cot Assembly
- Almost limitless onboard applications
Construction
- Stainless Steel AISI 316L (Base)
- Stainless Steel 17.4 PH (D ring)
- Screw fixings not supplied
Variants
-
3 Sizes available
-
WD-6604 6mm
-
WD-6605 8mm
-
WD-6606 10mm

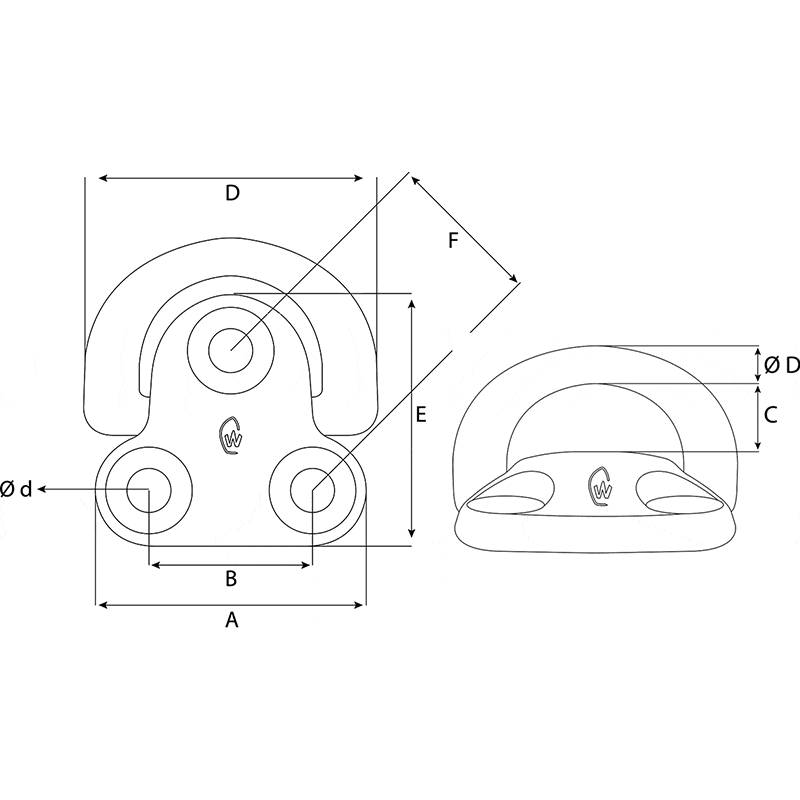

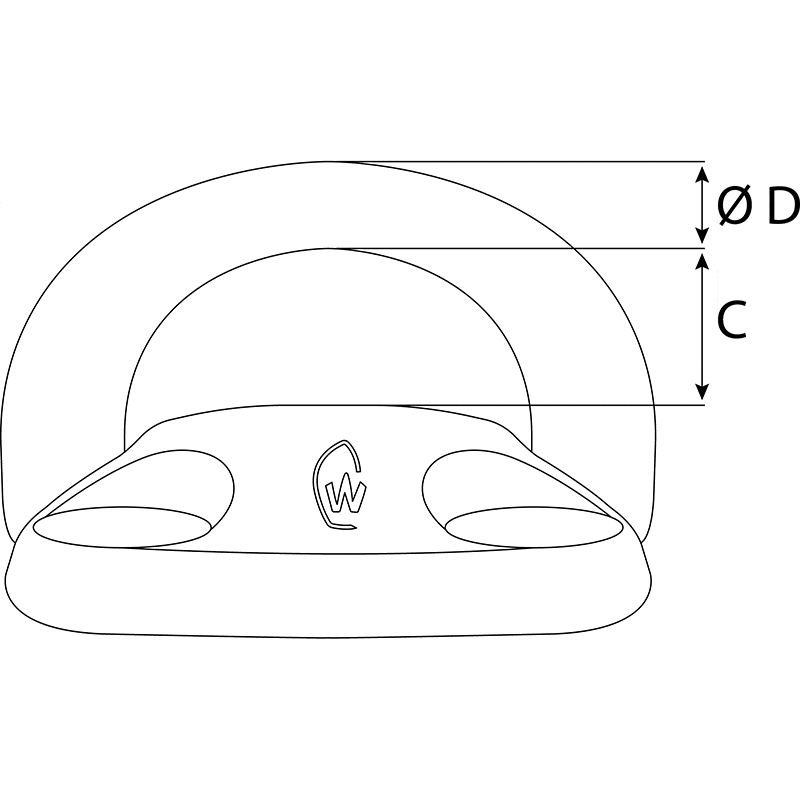

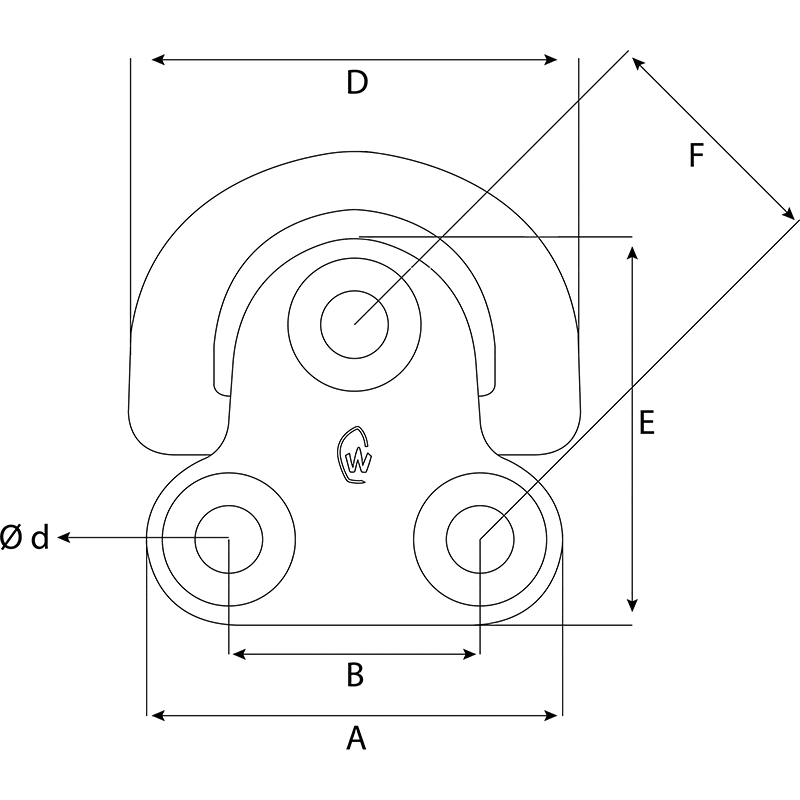

Specification
| Part | ØD (mm) | A (mm) |
B (mm) |
C (mm) |
Ød2 (mm) |
D (mm) |
E (mm) |
F (mm) |
Working Load (kg) | Break Load (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| WD-6604 | 6 | 45 | 27 | 15 | 6 | 44 | 41 | 27 | 1440 | 3,000 |
| WD-6605 | 8 | 57 | 35 | 18 | 8 | 59 | 51 | 35 | 2400 | 5,000 |
| WD-6606 | 10 | 75 | 45 | 25 | 10 | 80 | 68 | 45 | 4080 | 9000 |
