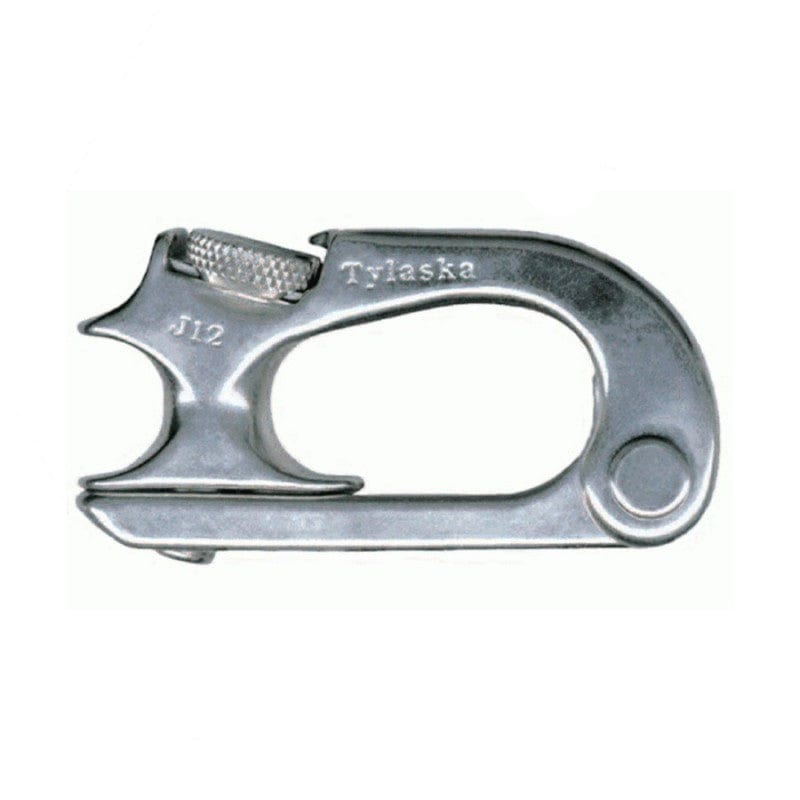

Genoa Sheet Shackle - J-Lock
Easily spliced onto Genoa sheets, outhauls and halyards for ultimate security. These low-profile Tylaska J-Locks are designed to fit through most Genoa cars and blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.
Specified as standard equipment by many of the worlds leading yacht manufacturers due to their strength, security and phenomenal build quality.
See all Tylaska Products
Uses
- Genoa Sheets
- Halyards
- Outhauls
- Preventers / Quick Attach Systems
Specification

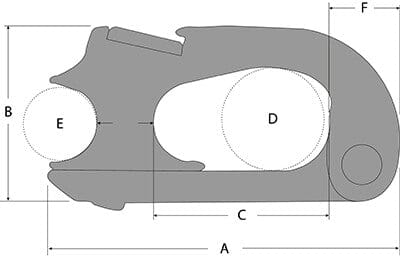

| Size | For Rope Diameter (mm) | Working Load Limit (kg) | Breaking Strength (kg) | Weight (g) | Length A (mm) | Width B (mm) |
|---|---|---|---|---|---|---|
| J8 | 8-10 | 1,814 | 3,629 | 54 | 13.5 | 12.7 |
| J12 | 10-12 | 2,722 | 5,443 | 82 | 13.5 | 20.6 |
| J20 | 12-16 | 4,536 | 9,072 | 167 | 16.0 | 14.6 |
| J30 | 14-20 | 6,804 | 13,608 | 403 | 16.0 | 24.1 |
